Technical Specifications
Overview
A power supply adapter, also known as an AC adapter or charger, converts alternating current (AC) from a wall outlet into direct current (DC) that electronic devices can use
Highlights
External power adapters move the heat and electrical noise generated during power conversion away from the device itself, contributing to improved safety and device lifespan.
What's inside

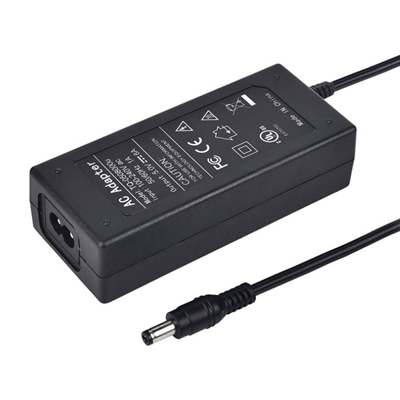

Power Supply Adapter
Electrical
•Input Rated Voltage 86Vac～264Vac
•Input Frequency Range 47Hz～63Hz
•Input Current 0.8A(Max)
•Input Inrush Current 50A - Efficiency 87.4%, level VI
•DC Output Voltage 12v± 5%
•DC Output Rated Current 3A / 3.5Amp
•DC Output Power 42w ( max )
•Input Frequency Range 47Hz～63Hz
•Input Current 0.8A(Max)
•Input Inrush Current 50A - Efficiency 87.4%, level VI
•DC Output Voltage 12v± 5%
•DC Output Rated Current 3A / 3.5Amp
•DC Output Power 42w ( max )
Mechanical
•Size 93*46.5*33.8mm
•DC connector 5.5*2.1/2.5*12mm ( optional )
•Dielectric Withstand Voltage A IEC320 3 pin input---output(FG)3K Vac 1 m
•Protection OVP ,OCP,SCP,OTP
•Leakage Current ≤5Ma
•Operating Temperature Range 0℃----+55℃
•Storage Temperature -20℃----+85℃
•DC connector 5.5*2.1/2.5*12mm ( optional )
•Dielectric Withstand Voltage A IEC320 3 pin input---output(FG)3K Vac 1 m
•Protection OVP ,OCP,SCP,OTP
•Leakage Current ≤5Ma
•Operating Temperature Range 0℃----+55℃
•Storage Temperature -20℃----+85℃
