Technical Specifications
Overview
A router power adapter, also known as an AC adapter or power supply, is a crucial component that converts AC power from your wall outlet into the lower voltage DC power your router needs to operate.
Highlights
Many adapters incorporate safety features like overcurrent, over- voltage, over-temperature, and short-circuit protection to protect the router from power-related issues.
What's inside

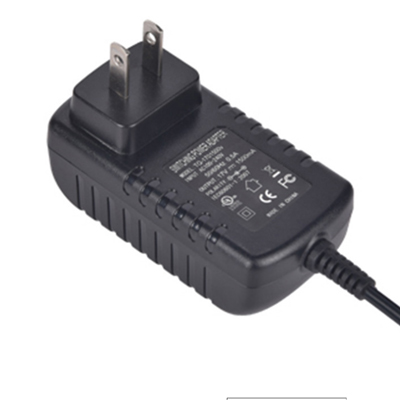

Router Power Adapter
Electrical
•Input Rated Voltage 86Vac～264Vac0
•Input Frequency Range 47Hz～63Hz
•Input Current 0.8A(Max)
•Input Inrush Current 50A - Efficiency 87.4%, level VI
•DC Output Voltage 12v± 5%
•DC Output Rated Current 3A / 3.5Amp
•DC Output Power 42w ( max )
•Input Frequency Range 47Hz～63Hz
•Input Current 0.8A(Max)
•Input Inrush Current 50A - Efficiency 87.4%, level VI
•DC Output Voltage 12v± 5%
•DC Output Rated Current 3A / 3.5Amp
•DC Output Power 42w ( max )
Mechanical
•Size 93*46.5*33.8mm
•Protection OVP ,OCP,SCP,OTP
•Leakage Current ≤5Ma
•Operating Temperature Range 0℃----+55℃
•Storage Temperature -20℃----+85℃
•Protection OVP ,OCP,SCP,OTP
•Leakage Current ≤5Ma
•Operating Temperature Range 0℃----+55℃
•Storage Temperature -20℃----+85℃
